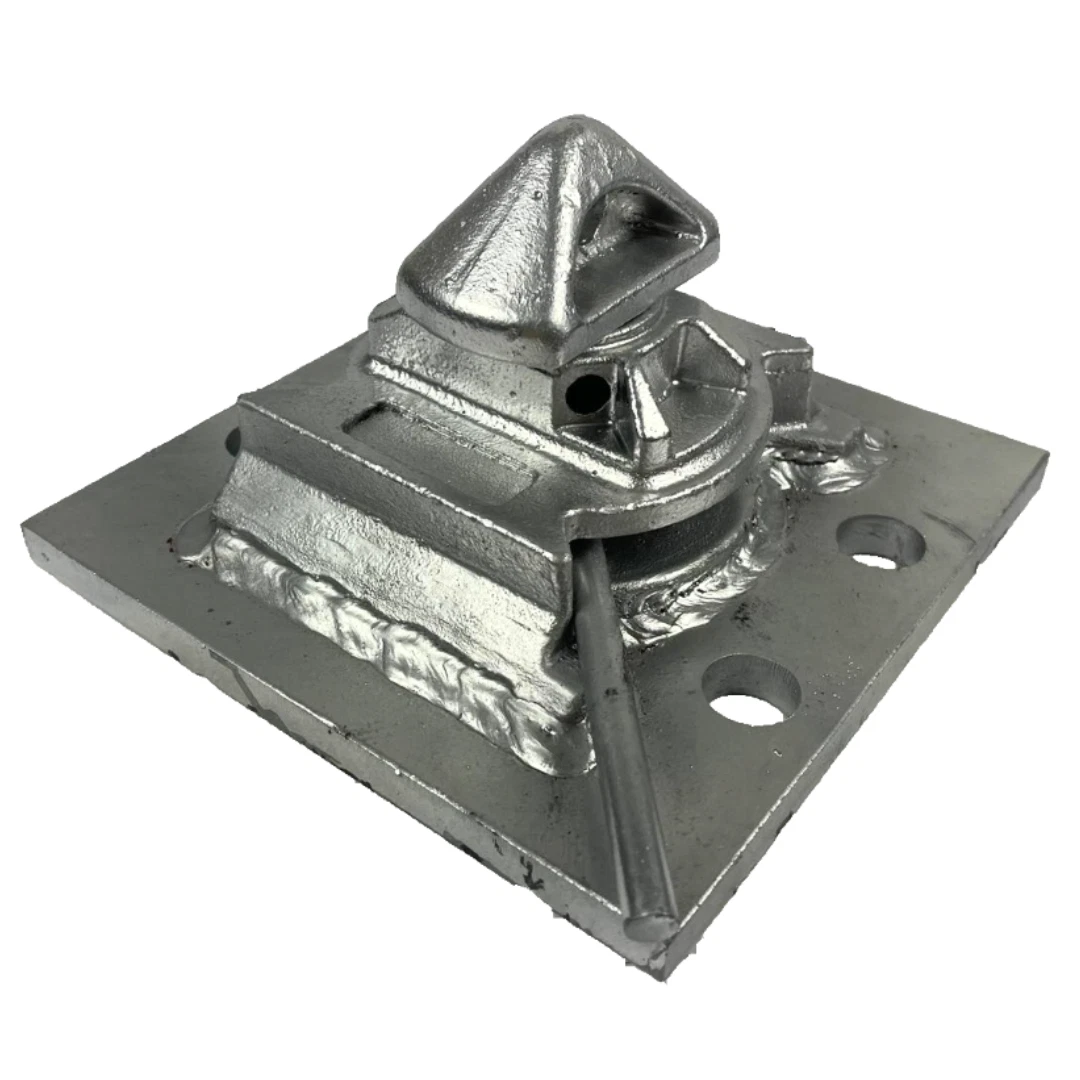

Shipping Container Twistlock Fixing Plate – Ground Fixing Bolt Down ISO Standard

Product Overview

The Shipping Container Twistlock Fixing Plate is a heavy-duty ground anchoring solution designed to securely fasten ISO shipping containers in place. Built from industrial-grade steel and engineered to ISO 1161 specifications, this bolt-down fixing plate ensures maximum stability for containers used in storage, modular housing, construction sites, or transport hubs. The twistlock mechanism provides fast and reliable locking, making it ideal for both permanent and semi-permanent installations.

Key Features & Specifications

• Product Type: ISO Standard Container Twistlock with Bolt-Down Fixing Plate
• Material: Forged high-strength steel, hot-dip galvanized or powder-coated finish for corrosion resistance
• Plate Dimensions:
  • Length: 178 mm (7 in)
  • Width: 120 mm (4.7 in)
  • Height: 95 mm (3.7 in)
  • Plate Thickness: 12–15 mm
• Weight Capacity: Up to 10–12 tons per twistlock (varies by model)
• Mounting Method: Bolt-down design with M20 anchor bolts (not included)
• Operation: Manual twist mechanism with 90° rotation for secure lock/unlock
• Compatibility: Fits all ISO standard container corner castings (20ft, 40ft, 45ft, High Cube)
• Certification: Conforms to ISO 1161 and CSC safety standards

Benefits

• Provides secure anchorage for shipping containers on concrete or steel foundations
• Prevents shifting, sliding, or movement in high winds, seismic zones, or heavy-load conditions
• Easy installation – bolt down with no welding required
• Designed for long-term durability with galvanized corrosion protection
• Compatible with all ISO shipping containers for flexible site applications
• Reusable and relocatable for cost-effective container stability

Applications

• Construction sites – secure container offices, tool rooms, and storage units
• Container housing & modular buildings – create safe and stable installations
• Industrial & warehouse yards – anchor containers for long-term storage
• Events & exhibitions – temporary secure container setups
• Marine ports, terminals, and logistics hubs – safe and compliant container fixing.
